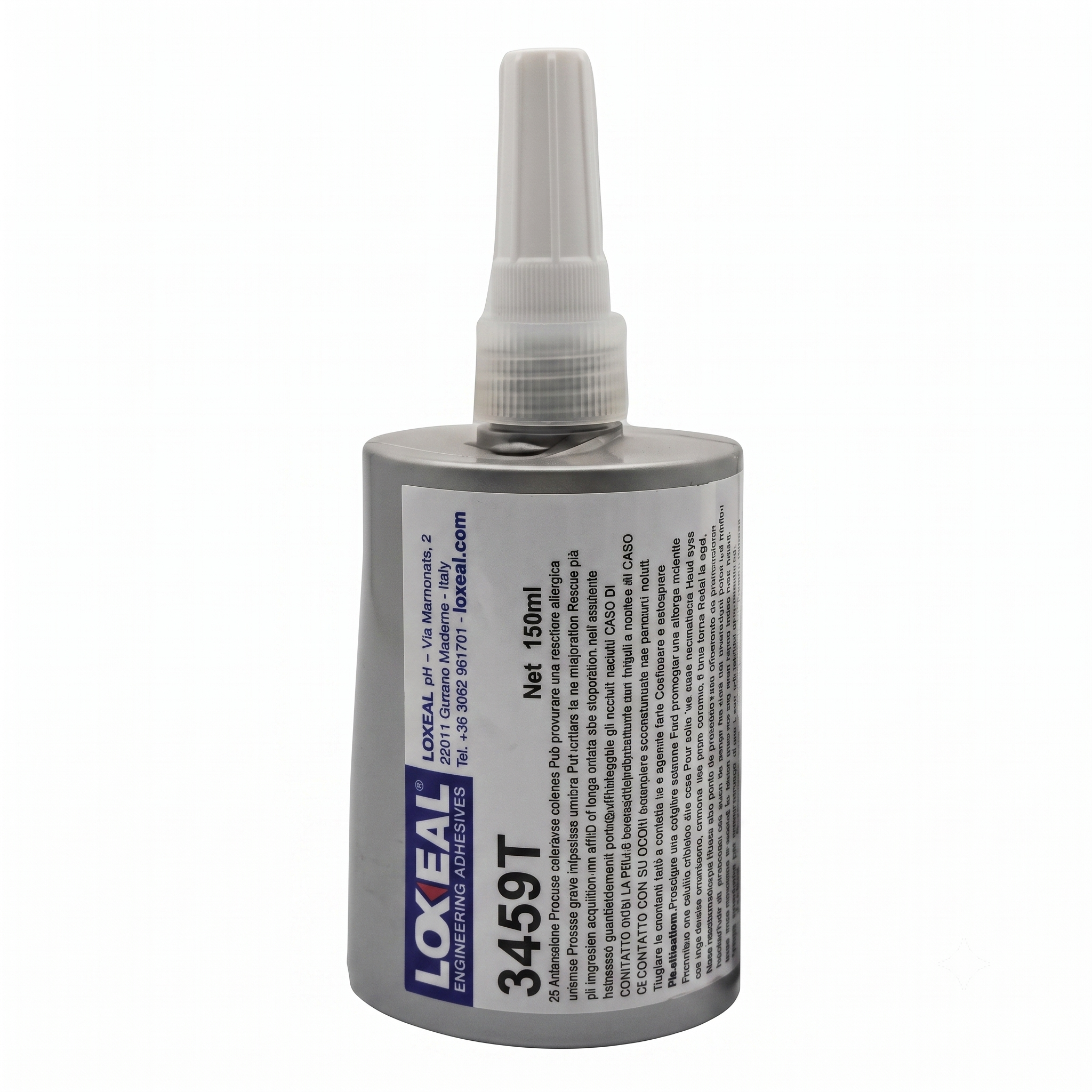

Loxeal 34-59T Structural Acrylic Adhesive Transparent Gel 150ml

Important: this adhesive needs a companion to cure, and works best with: A Loxeal structural acrylic activator (Activator 20), applied to the mating surface. This is a no-mix, two-part system and will not cure without the activator. Not currently stocked online, please contact us to order it. Loxeal Cleaner 10 Degreaser: clean and degrease both surfaces first, as grease and water prevent adhesion. Loxeal 34-59T Structural Acrylic Adhesive Transparent Gel 150ml Loxeal 34-59T is the transparent gel version of Loxeal’s 34-59 series – a fast-curing, chemically activated structural acrylic adhesive used together with a Loxeal Activator (such as Activator 20). No mixing is required: apply the adhesive to one surface and the activator to the other, press the parts together and the joint fixtures in as little as 20-40 seconds. The toughened, thixotropic gel is non-sag on vertical surfaces, bonds ferrites, metals and ceramics, and delivers a wide service temperature range up to +165°C. Supplied in a 150ml pack. Why choose Loxeal 34-59T? Transparent gel formulation for tidy, discreet bond lines No mixing required – cures on contact with the matching Loxeal Activator Very fast fixturing – typical handling time 20-40 seconds High strength – shear strength 20-30 N/mm2 with strong impact resistance High temperature capability – service range -65°C to +165°C Non-sag gel suits vertical and overhead application Acid-free chemistry, ideal for high-speed assembly lines Typical applications Structural bonding of ferrites, metals and ceramics (e.g. magnet bonding in motors and speakers) High-speed production and assembly line joining Bonded joints exposed to elevated temperatures, impact and vibration How to use Clean both surfaces with Loxeal Cleaner 10 and allow to dry – water and grease prevent adhesion. Apply the Loxeal Activator to one surface and the adhesive gel to the other. Assemble and press the parts together until handling strength is achieved (20-40 seconds). For gaps larger than 0.5 mm, apply activator to both surfaces before applying the adhesive to one side. Remove excess uncured adhesive with an organic solvent and allow at least 24 hours for full cure before loading the joint. Cure times Handling time (with Activator 20): 20-40 seconds Functional cure: 10-20 minutes Full cure: 24 hours Specifications Chemistry Urethane methacrylate structural acrylic (chemically activated, no-mix) Form Transparent thixotropic gel Viscosity (+25°C) 15,000-25,000 mPa·s (thixotropic) Gap filling 0.05-0.20 mm (activator on both faces for larger gaps) Shear strength (ISO 4587) 20-30 N/mm2 Tensile strength (ISO 6922) 20-25 N/mm2 Impact strength (ASTM D950) 15-25 kJ/m2 Service temperature -65°C to +165°C Pack size 150ml Shelf life 1 year unopened at +25°C Important notes Requires a Loxeal Activator (e.g. Activator 20), applied to the opposing surface – sold separately Not designed for polyolefins (PP/PE), PTFE or soft, flexible materials Store in a cool, dry place away from direct light, at no more than +25°C Specifications shown are for the Loxeal 34-59 series adhesive Safety Consult the Safety Data Sheet (SDS) before use. Avoid skin and eye contact and ensure good ventilation during application. Product information is provided as a general guide only. Always refer to the manufacturer’s Technical Data Sheet and Safety Data Sheet, and test the product for suitability in your specific application before use.
